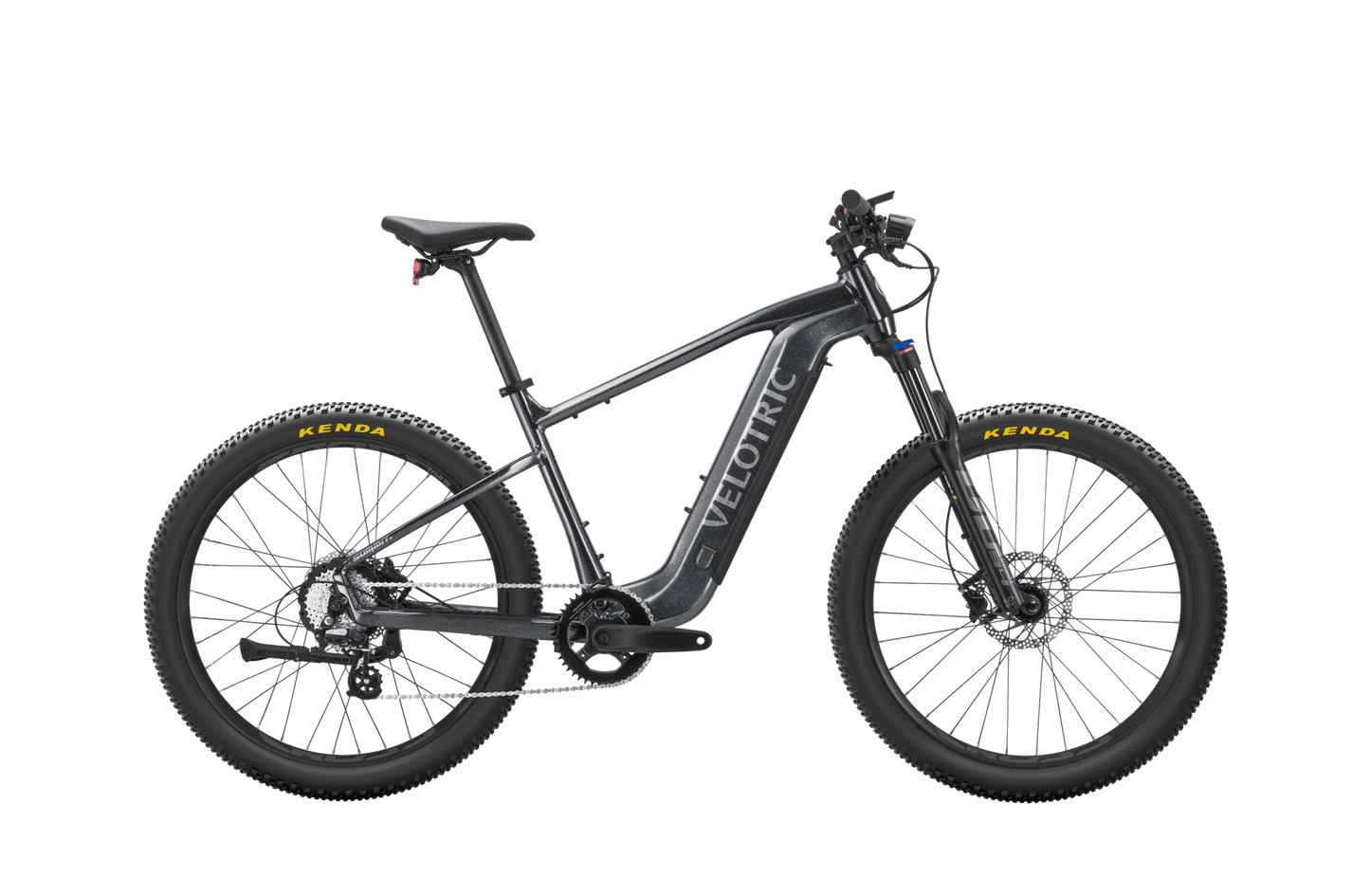

Velotric Summit 1 eMTB Off Road All Terrain Electric Mountain Bike

Fenders, rear rack and other accessories available.

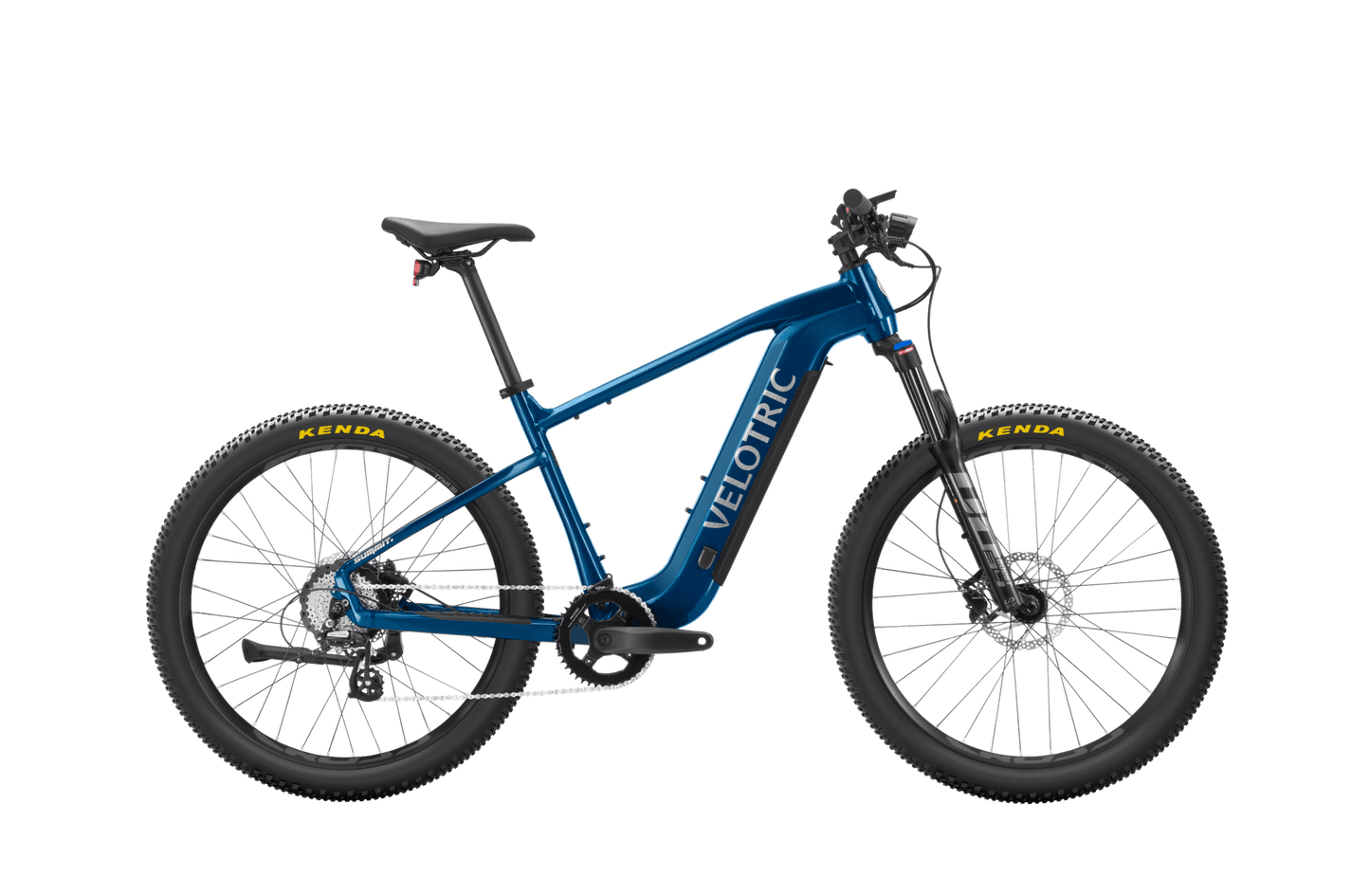

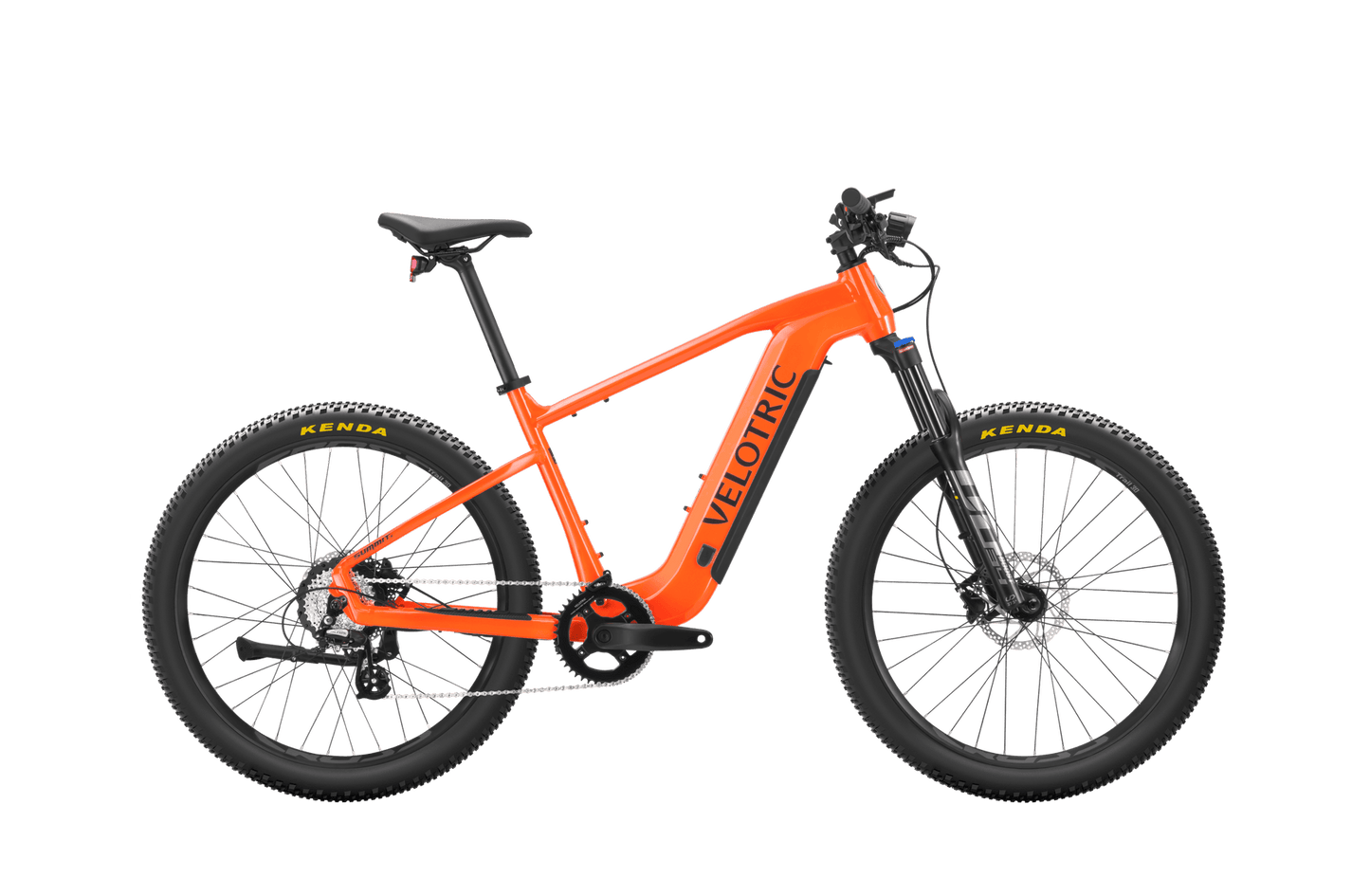

Available in multiple colors.

• TECHNICAL SPECIFICATIONS

  Size Guide
  Bike Size

  Regular/Large

  User Height Range

  Regular: 5'1" ~ 5'10"/Large: 5'8" ~ 6'6"
  Frameset
  Frame

  Triple-Butted Aluminum Alloy

  Fork

  Hydraulic suspension 120mm travel with Lock-out, 15x110mm thru-axle
  Electronics
  Motor

  48V, 750W (1300W Peak), 90Nm

  Battery

  48V, 705.6Wh, IPX7, Certificated by UL 2271

  Cell

  Samsung/LG 21700 cell, Certificated by UL 2580

  Charger

  48V, 3A Fast Charger

  Sensor

  Torque sensor

  Display

  2.8" Full color, high brightness, Bluetooth, adjustable angle

  USB Port

  USB Type-C phone charge

  Security

  Apple Find My™

  Throttle

  Trigger-control, removable

  Pedal Assist

  3 Modes × 5 Levels

  Walk Mode

  2.9 MPH

  Front Light

  Light sensing 130Lux high-output integrated LED, adjustable angle

  Rear Light

  Brake highlight, turn signal, rear light steady/flash

  Water Resistant

  IPX6
  Speed & Range
  Max Speed (Default）

  20 MPH

  Max Speed Adjustable Range

  12~28 MPH

  Class

  1/2/3

  Throttle Range

  60 Miles

  Pedal Assist Range

  70 Miles
  Drivetrain
  Chainrings

  BCD 104, 44T, narrow wide chainring

  Crankset

  Aluminum Alloy, 170mm

  Cassette

  8-speed

  Rear Derailleur

  SHIMANO 8-speed

  Shift Lever

  SHIMANO 8-speed

  Chain

  KMC 8-speed
  Brake
  Brake

  SHIMANO Hydraulic Disc Brake

  Rotors

  180mm front and rear

  Brake Levers

  Aluminum Alloy, with power cutoff
  Wheel
  Rims

  Double-wall Aluminum Alloy

  Front Hub

  NOVATEC Aluminum Alloy, 15x110mm thru-axle

  Tire

  Kenda 27.5x2.6" MTB puncture resistant tires
  Cockpit
  Handlebar

  Aluminum Alloy, Φ31.8mm, 760mm (R)/780mm (L)

  Grips

  Velotric sports grips, lockable

  Stem

  Adjustable, Aluminum Alloy, φ31.8mm, 35mm (R)/50mm (L)

  Saddle

  VELOTRIC ergonomic seat

  Seatpost

  Aluminum Alloy, φ30.9mm, 350mm

  Clamp

  Aluminum Alloy, quick release
  Supports
  Fenders

  Optional

  Rear Rack

  Optional

  Pedals

  Aluminum Alloy

  Kickstand

  Aluminum Alloy, included, rear mount
  Weight & Load
  Bike Weight

  62lbs

  Max Bike Load Capacity

  440lbs
  Certification
  UL Certification

  UL 2849

  ISO Standard

  ISO 4210

For more information and latest pricing please see the Velotric website.

https://www.velotricbike.com/products/velotric-summit-1
