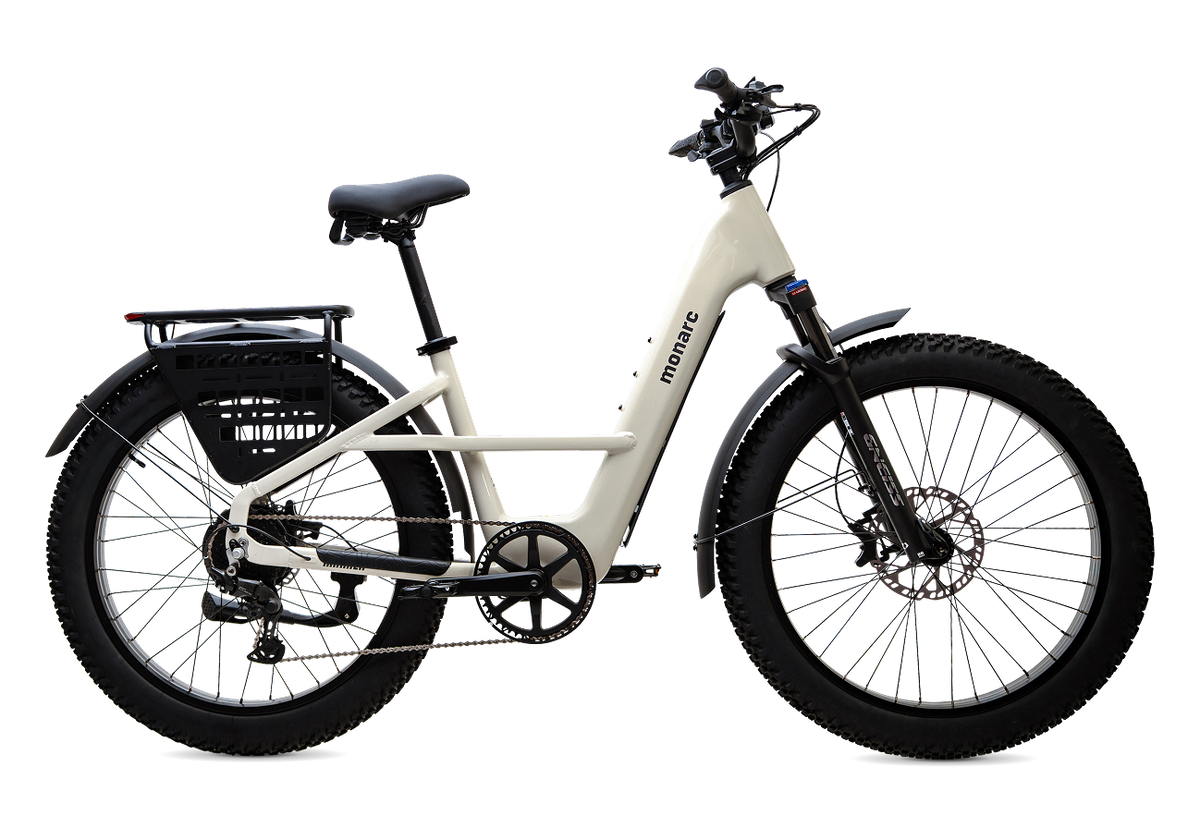

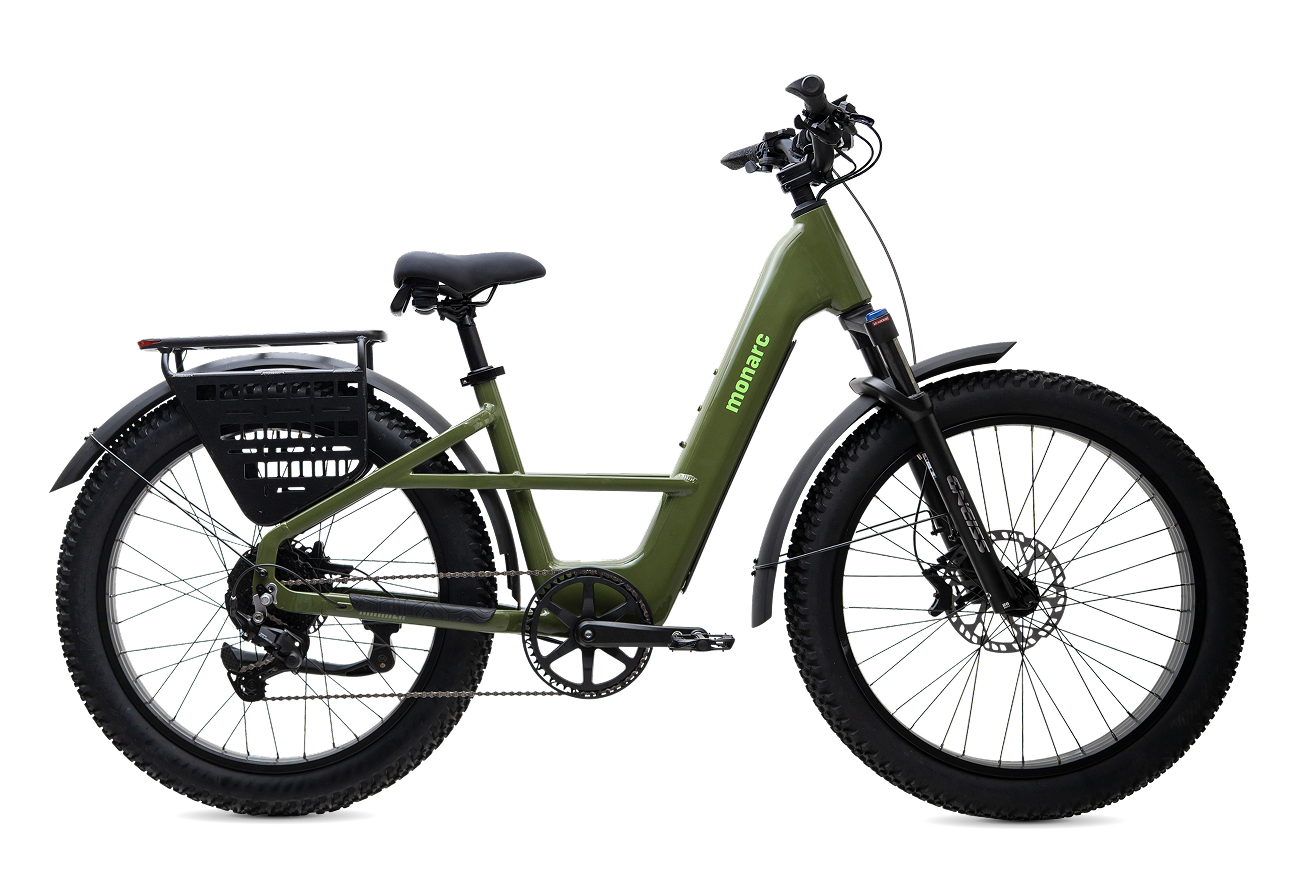

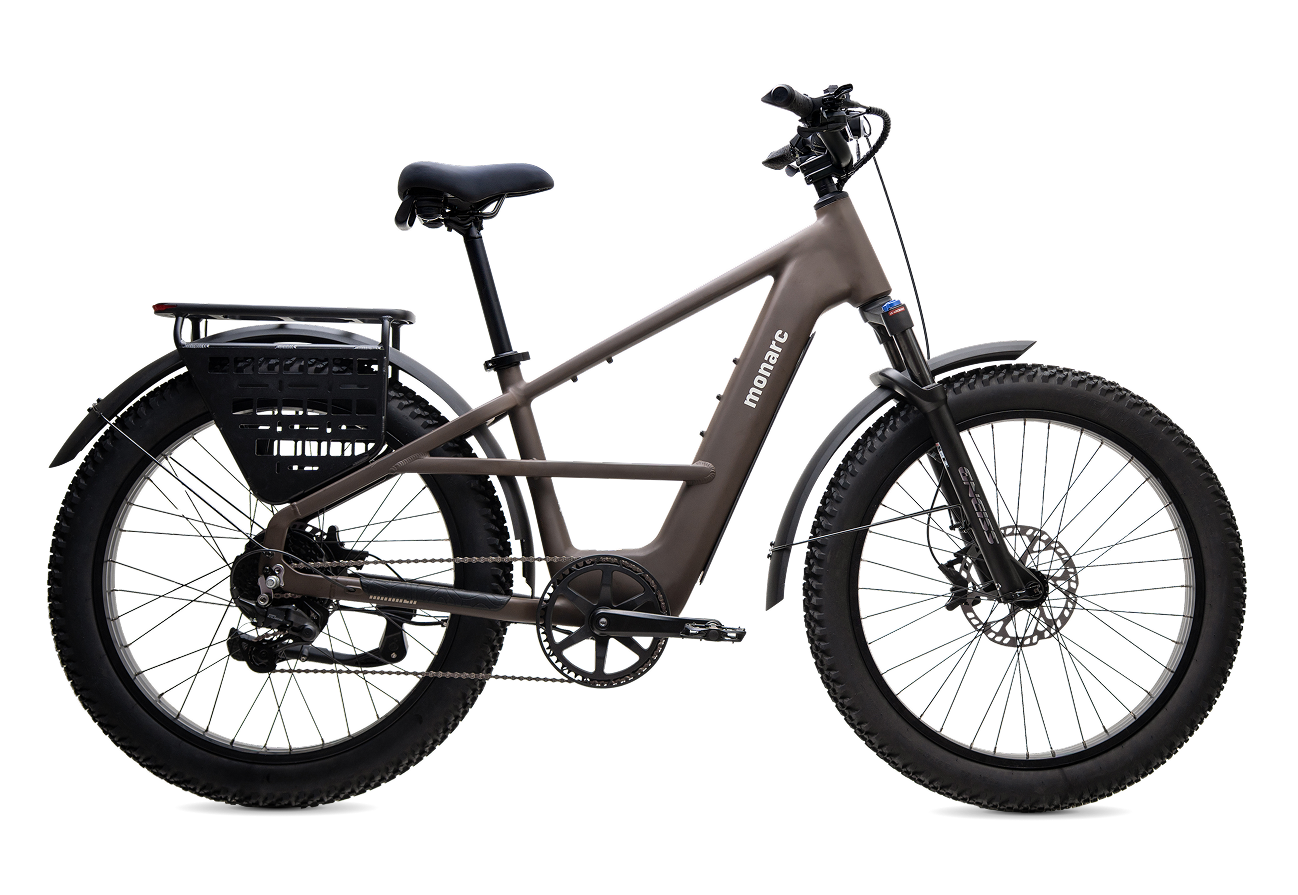

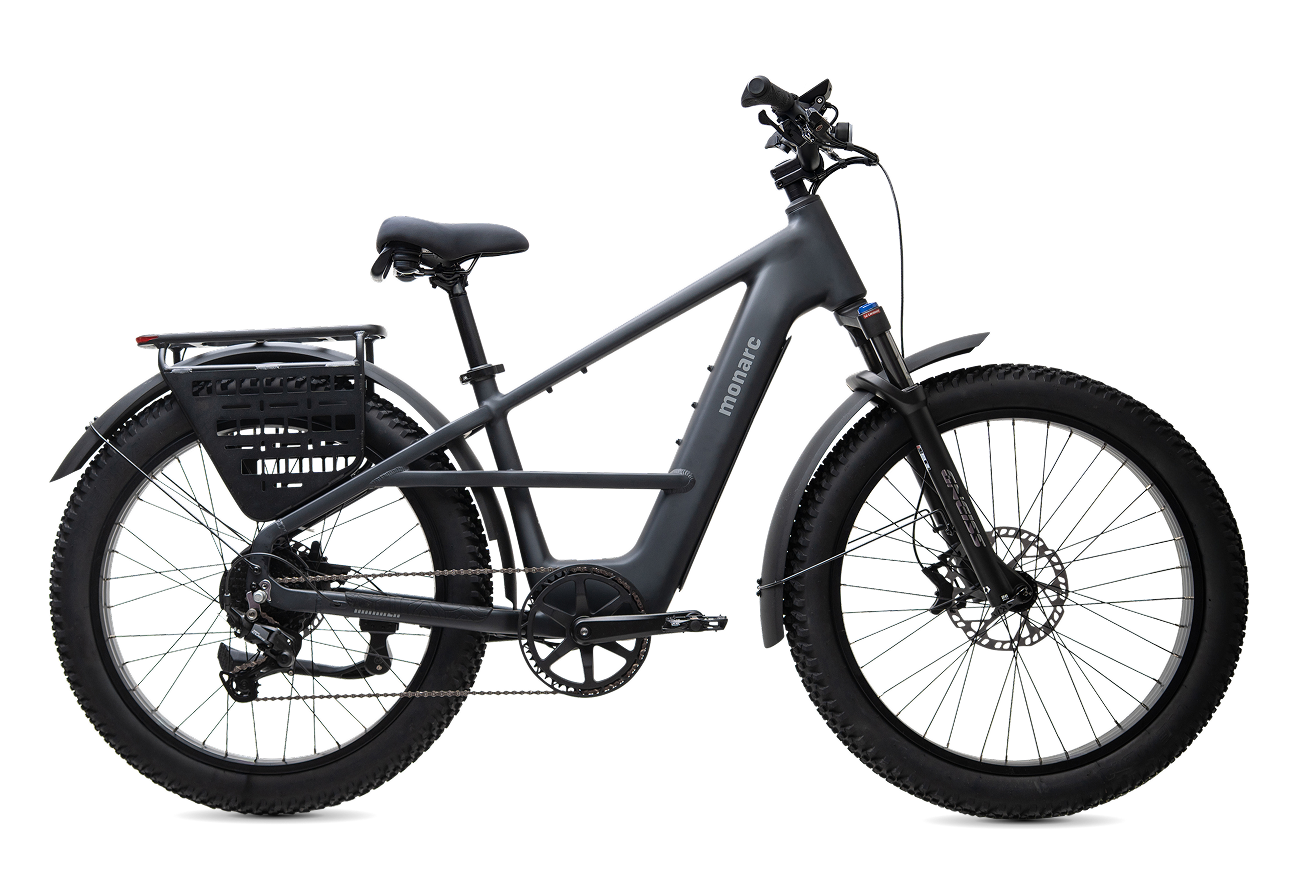

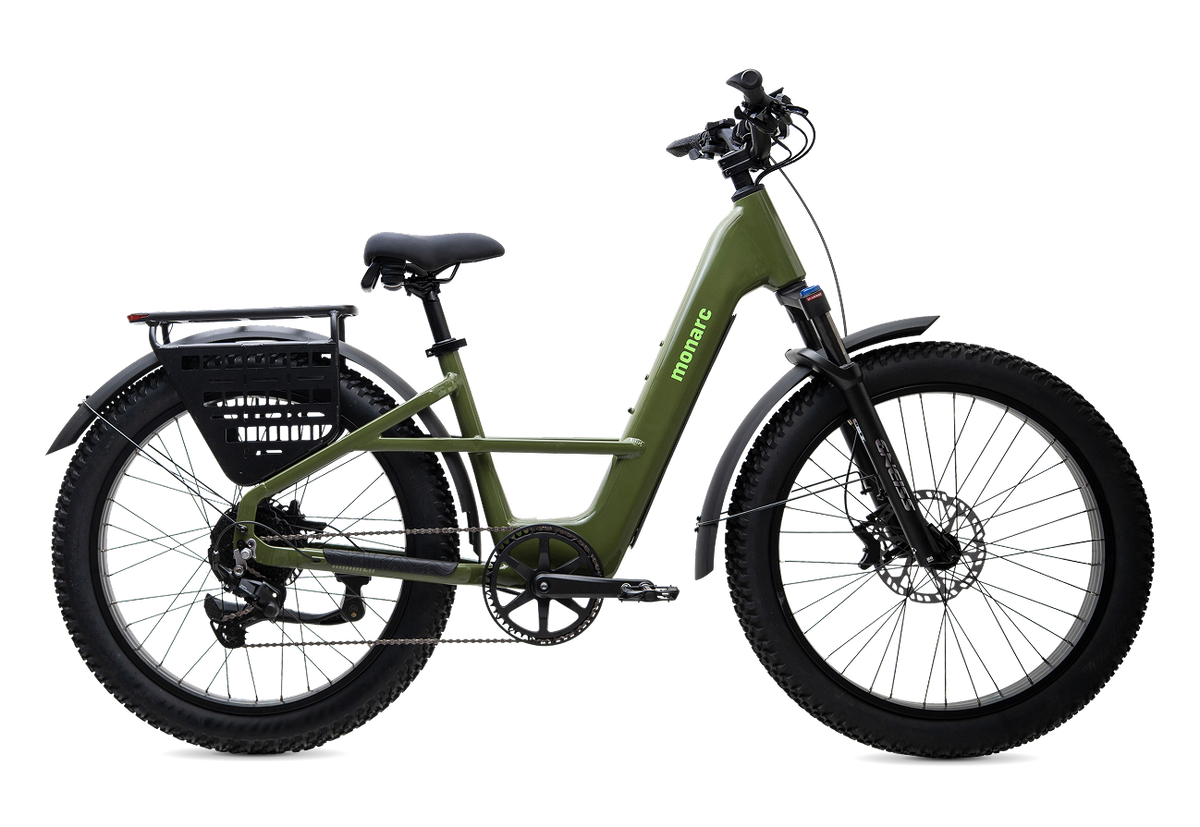

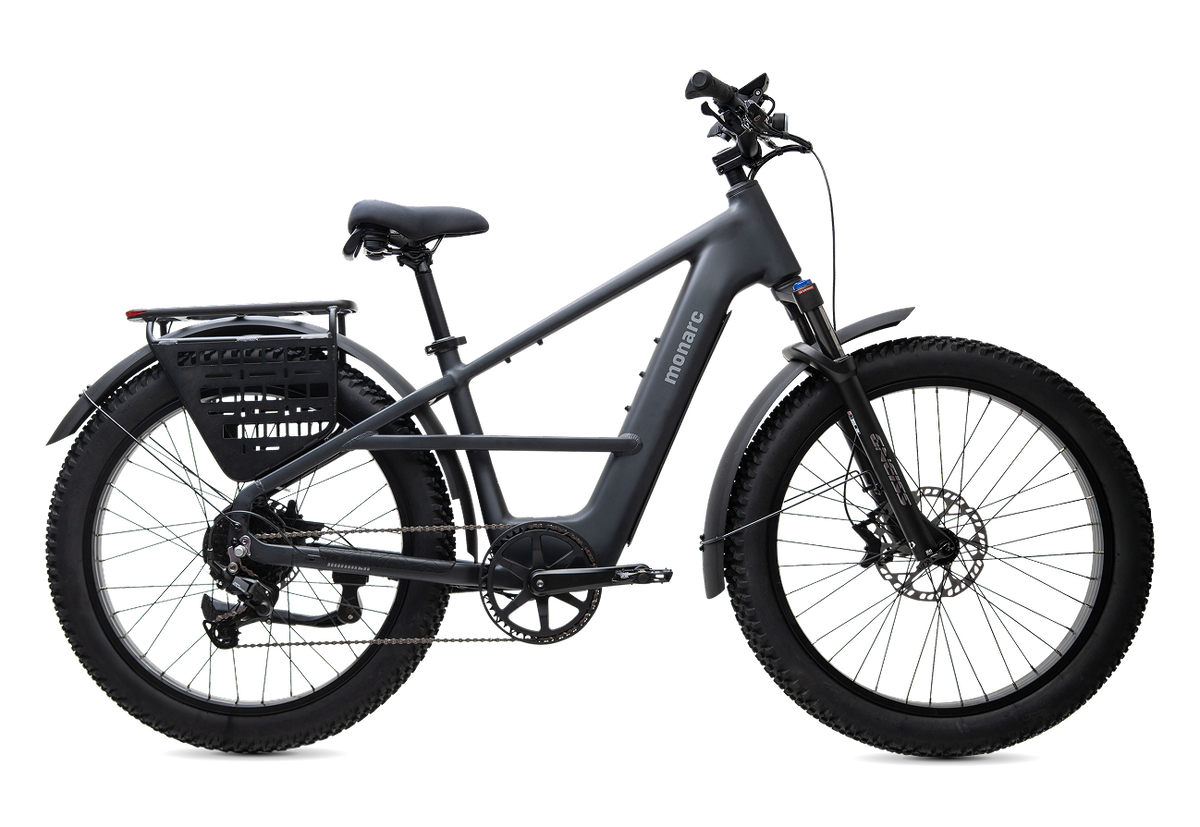

Monarc Marker Fat Tire 750w Touchscreen - 2 Batteries

Class 1/2/3 (Default: Class 2)

Up to 60 miles per battery (120 miles)

28mph

5 modes: Cruise, Breeze, Explore, Sport, Boost

Marker ebike is rated to IPX6. Monarc battery is rated to IPX7.

UL2849, ISO 4210

UL2271

Bafang B750 rear hub motor. 1638W peak motor power, 750W nominal

85Nm

(2) Lithium-ion 48V, 15Ah (720Wh) batteries with LG cells, semi-integrated and removable in one easy motion

30A internal controller

48V, 5A Fast Charger. Equipped with smart charging functionality that allows riders to preset a maximum charge percentage, automatically stopping charging once reached to help extend battery lifespan. (Tip: By limiting your charge to 80% during charge cycles, you can triple your battery lifespan)

3 hours (per battery)

Custom Monarc 3.5-inch TouchDisplay (touch screen)

Monarc app connectivity/ Bluetooth connectivity/ USB charging/ Display Lock (via app)/ Over-the-air updates/ Smart accessory connectivity (Smart Helmet, Radar, TPMS, Camera, Heart Rate, Phone)/ Full ride customization/ Customizable color theme

Sept '26: Turn-by-turn navigation connection (via bluetooth)

Toggle between torque and cadence sensor (default torque sensor)

Left-side thumb throttle

Gneiss reverse-arch suspension fork. 80mm of travel with lockout and preload adjustments

Custom Kenda all-terrain 26x4 inch tires

Hydraulic, quad-piston. Star Union Talon P4

Hydraulic, quad-piston. Star Union Talon P4

203mm 6 bolt

180mm 6 bolt

Shimano Cues, 9 speed

Cues 9Spd

11-36 tooth

Prowheel, 48 tooth

KMC

Thru-axle

Solid, bolt-on axle

Monarc plush comfort saddle paired with a 2-bolt seat post

Heavy-duty steel side-sweeping kickstand

Flexible, damage-resistant polypropylene fenders

Included MIK lightweight rear rack, equipped with slots for various carrying capabilities. 66lbs (30kg) capacity

Integrated, 494 Lumens

Integrated into rear rack, functions as a rear light, brake light, and turn signals.

Ergonomic, full-length lock-on Monarc grips

Aluminum

Aluminum 6061 frame, hydroformed with smooth welding

87lbs

420lbs

66lbs (30kg)

330lbs
