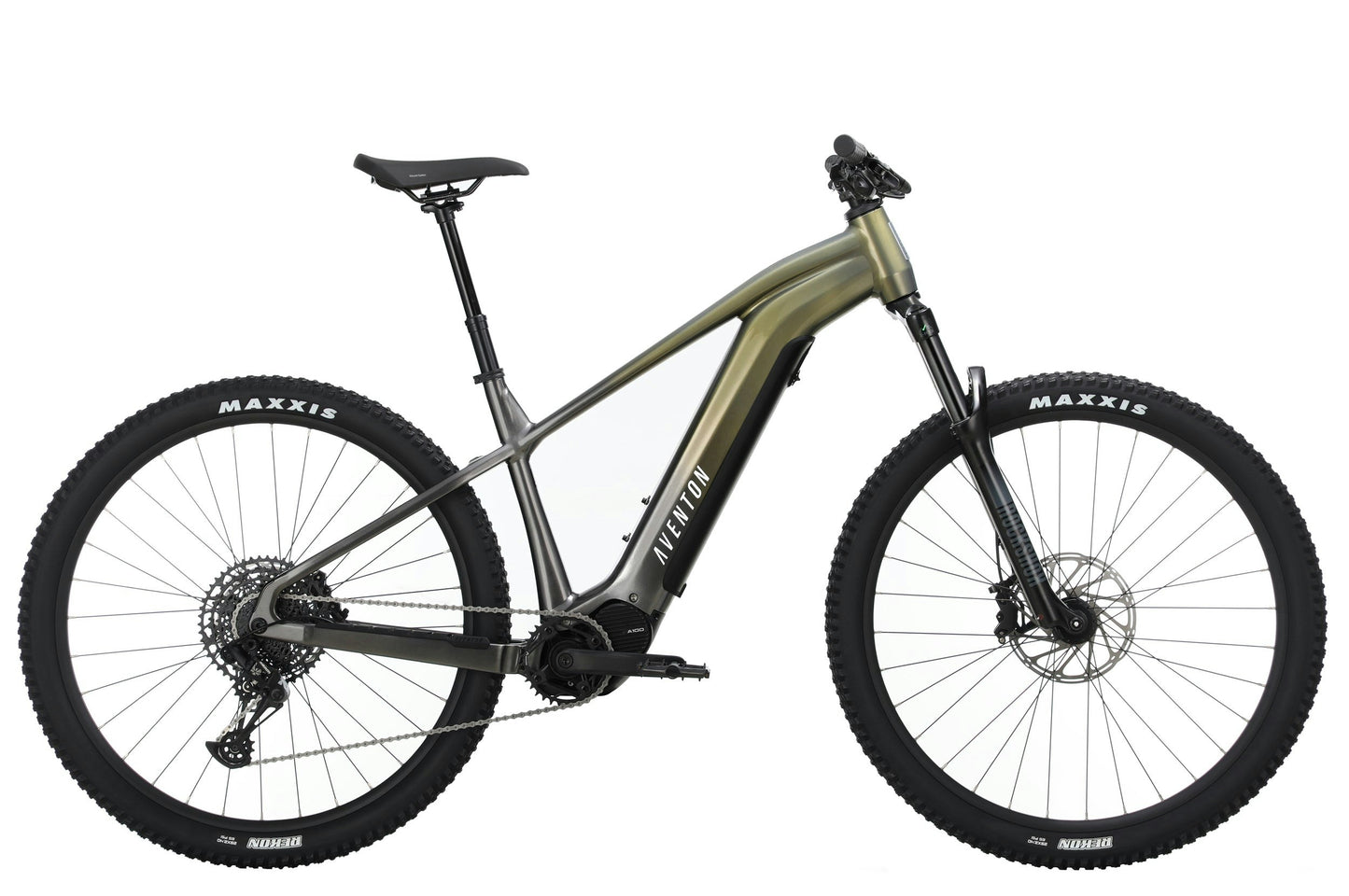

Aventon RAMBLAS eMTB All Terrain Mountain Electric Bike

Aventon RAMBLAS eMTB All Terrain Mountain Electric Bike

Regular price $2,699.00
Regular price $2,699.00 Sale price $2,699.00
Sale Sold out
Size


No hidden setup fees like some of the other bike shops! Save yourself $$.

For more information please see the Aventon website.

https://www.aventon.com/products/ramblas-electric-mountain-bike

Technical Overview
Ramblas comes out of the box as a Class I ebike, with pedal assist and a top speed of 20 MPH. Aventon’s Ramblas is built to the IP67-rated standard. IP67 rating means it’s protected against the effects of immersion in water to a depth between 15 cm and 1 meter. IP67-rated products are referred to as waterproof vs only water-resistant, so you can cross creeks, and ride in rain and mud without worry. Aventon ebikes are not intended to be subjected to a pressurized spray. Do not use a pressure washer or sprayer to clean your ebike.
SIZE & FIT
Ramblas comes in 4 sizes to suit most adults.

Small: 5'1" - 5'5"
Medium: 5'5" - 5'9"
Large: 5'10" - 6'2"
Extra Large: 6'2" - 6'5"

TECHNICAL SPECIFICATIONS
General Info
Model
Ramblas eMTB
Weight - 54lbs, size large, w/o pedals
Total Weight Limit - 300 lbs
Ideal Use - Mountain Biking, Urban Riding
Speed - 20 MPH
Range - Up to 80 miles
Pedal Assist3 Levels
Rider Height5'1" - 6'5"
Fork - RockShox 35 Silver R 130mm travel. Coil, 44mm offset, 15x110 QR axle, 1.5" tapered steerer tube
Frame - 6061 Single-Butted Aluminum Alloy
Frame Style - Step-Over
Hubs - 15x110 32H Front, 12x148 32H
Rear Rim - Double Wall Aluminum 32h Front & Rear
Spokes - Black Stainless 13 Gauge
Tires - S Maxxis Rekon 27.5x2.4", M/L/XL Maxxis Rekon 29x2.4"
Tubes - Butyl Rubber, Presta Valve
Battery - Aventon 708 WH. 36V LG 21700 cells.
Charger - 42V 4A charger
Display - LCD Smart "Easy Read"
Motor - Aventon a100 mid-drive. 36v, 250W (sustained), 750W (peak), 100NM torque. IP67 rating
Rear Brake Rotor - Sram 180mm 6 bolt
Front Brake Rotor - Sram 200mm 6 bolt
Brakes - Sram DB8 mineral 4 piston hydraulic disc brakes
Rear Derailleur - Sram NX Eagle 1x12
Pedals - 9/16" Alloy Platform
Chainring - Sram Nx 34t
Cassette - Sram SX Eagle 1x12 11-50t
Shift Lever - Sram NX Eagle 1x12 single click
Seatpost - 150mm travel for size M-XL. 125mm travel for size S. 31.6mm ø. 395mm length
Handlebars - 35mm, 9° rise, 720mm width for size S, 760mm width for size M-XL
Grips - Lock on
Stem - 35mm Ø, 40mm length
Seat Clamp - Aventon 34.9mm
