Aventon

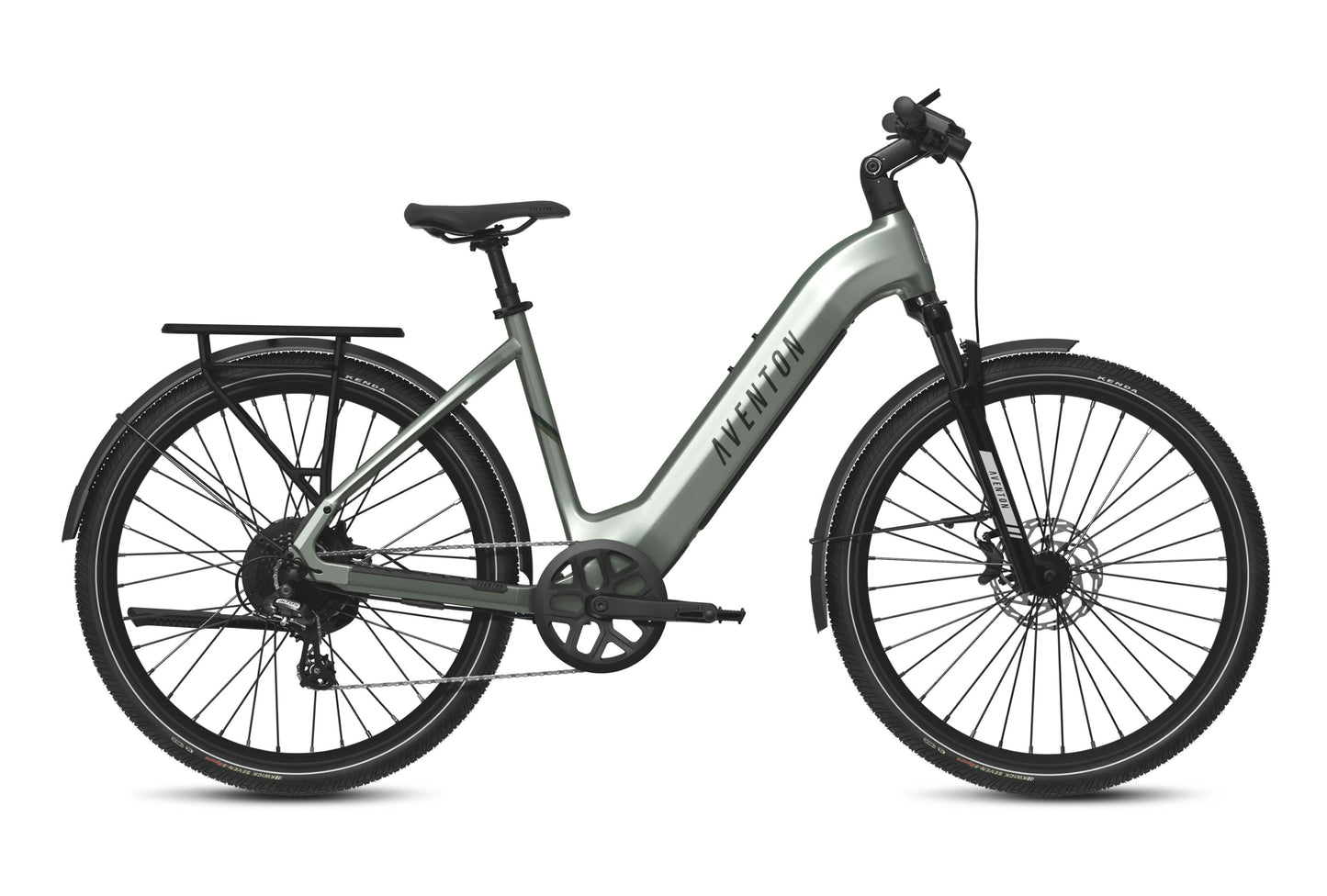

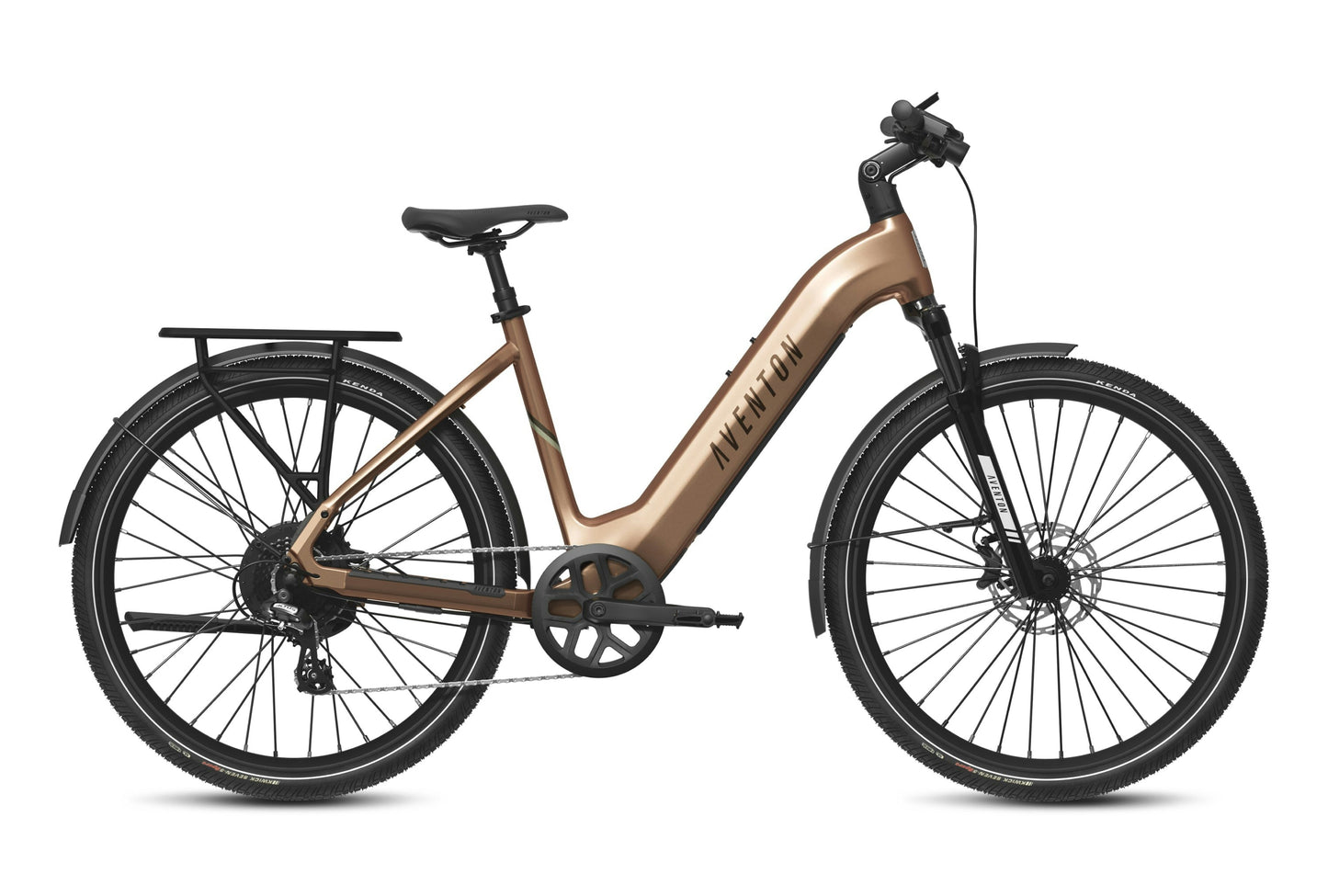

Aventon LEVEL 3 Step Thru Commuter Electric Bike

Aventon LEVEL 3 Step Thru Commuter Electric Bike

$1,899.00
$1,899.00 $1,899.00
Sale Sold out
Color
Size

No hidden setup fees like some of the other bike shops! Save yourself $$.

For more information please see the Aventon website.

https://www.aventon.com/products/level-3-step-through-commuter-ebike



TECHNICAL SPECIFICATIONS
General Info
Model - Level 3 Step Through Commuter Ebike
Weight - 67lbs
Total Weight Limit - 300 lbs
Rider Height - 4'11" - 6'1"
Ebike Class - Class 2 Ebike
Water Resistance - IPX4
Range - Up to 70 Miles
Battery Safety Certifications - Certified to UL 2271
Safety Certifications - UL Safety Certified
UL 2849
Ideal Use - Commuting
Pedal Assist - 3 Levels (with Ride Tune Customization)

Frameset
Frame - 6061 Aluminum, Gravity Cast Front Triangle
Fork - Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset
Rear Spacing - 142mm
Fork Spacing - 110mm
Frame Style - Step-Through

Wheelset
Front Wheel - 27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve
Rear Wheel - 27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor
Tires - Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20

Ebike System
Motor - 36V, 500W (sustained), 864W (peak)
Motor Torque - 60Nm
Display - Aventon BC280
Battery - Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Battery Weight - 8.7lbs
Controller - 36V, 24A
Throttle - Aventon LH Handlebar Mounted
Sensors - Double Sided Bottom Bracket Torque Sensor
Charger - 36V Output: 42V/ 4A
Charging time from 0% to 100% - 5 hours
Lights - Front and rear lights integrated
Speed - Class 2

Brakes
Front Brake - Magura AT-2 Hydraulic disc brake
Rear Brake - Magura AT-2 Hydraulic disc brake
Front Brake Rotor - Magura MDR-A 180mm 6 Bolt Rotor
Rear Brake Rotor - Magura MDR-A 180mm 6 Bolt Rotor

Drivetrain
Rear Derailleur - Shimano Altus RD-M310
Shifter - Shimano 8 Speed Trigger SL-M315-8R
Chain - 7/8 speed 120L
Cassette - 12-32T / 8 Speed Shimano CS HG200-8
Chainring - 48T
Chainring BCD - 104
Crankset - 3pc, 170mm crank arm
Bottom Bracket - Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm
Pedals - 9/16" Composite Platform

Cockpit
Saddle - Aventon Saddle
Seatpost - 30.9mm Aventon Suspension Seatpost with 50mm travel
Seatpost Clamp - 34.9mm
Handlebars - Aluminum 31.8mm, 680mm
Grips - Aventon Lock on grips
Headset - Sealed Bearing Headset

Included Accessories
Rear Rack Weight Limit - 60lbs

Technical Overview
The Level 3 comes out of the box as a Class 2 ebike, with pedal assist and throttle. It can be unlocked to a Class 3 ebike. The Level 3 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited or only Class 1 bikes are permitted. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike. *Max range determined using PAS 1 throughout flat terrain with a rider weight of 160 lb.
